Virtual Production @WLab

A fully integrated ICVFX ecosystem powered by Brompton and Unreal Engine

Rent out our space @Building 22 • Brooklyn Navy Yard

Core Specifications

  • LED Wall

    2.3mm

    Pixel pitch for moiré-free shooting at any distance

  • Brightness

    1600 nits

    HDR-ready output with deep blacks

  • Power

    400 Amps

    3-Phase Camlock for production lighting

  • Studio Dimensions

    50' × 45'

    Column-free shooting space (depth × width)

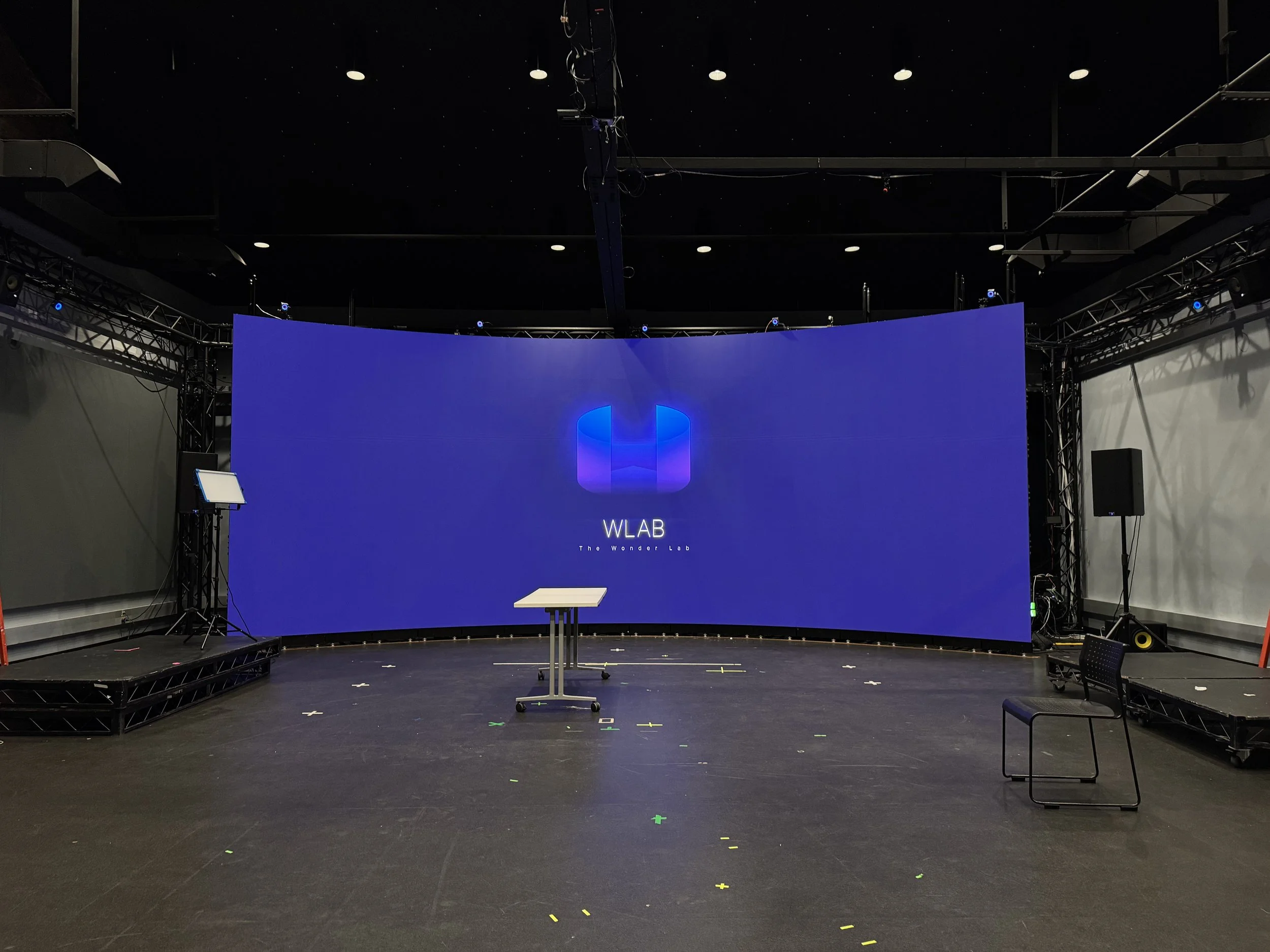

  • Curved LED Screen

    35' × 15'

    Arc-shaped LED wall (width × height)

  • Camera Tracking

    Triple Redundancy

    OptiTrack + Stype RedSpy + Vive Mars

  • Network

    10GbE

    Fiber + internal high-speed network

Display Technology

LED Processor

Brompton Tessera SX40

Color Space

ACEScg, Rec.2020, HDR10

Refresh Rate

Up to 7680Hz

Genlock

Tri-level sync support

Camera Support

ARRI

Alexa LF/Mini LF Ready

RED

Komodo/V-Raptor Certified

Blackmagic

URSA/Pocket Cinema

Tracking Systems

OptiTrack, Stype RedSpy, Vive Mars

Production Support

  • Freight Elevator & Loading Dock

    Truck-accessible loading dock with freight elevator for seamless equipment load-in

  • Free Parking

    Complimentary on-site parking for crew and client vehicles

  • Power Infrastructure

    400 Amps of 3-Phase Camlock power dedicated to production lighting

  • UniFi Network System

    Full building coverage with high-speed WiFi and 10GbE fiber connectivity

  • Climate Control

    Full HVAC with silent operation modes for sound recording

  • ADA Accessible

    Wheelchair-accessible facilities throughout the studio

Render Infrastructure

Engine

Unreal Engine 5.6

Render Node

Custom-Built Dual A6000 ADA

Art Station

RTX 4090 Workstation

Display Config

nDisplay Multi-User Editing

Lighting

GPU Lightmass, Lumen GI

Comfort Meets Capability

Located in the historic Building 22 of the Brooklyn Navy Yard, our facility is designed for high-end commercial and celebrity productions.

Client Comfort

  • Makeup Room

    Professional makeup station with vanity lighting and styling area

  • Conference Room

    Private meeting space for creative reviews and production planning

  • Green Room / Lounge

    Comfortable client lounge and talent holding area with refreshments

  • Kitchenette

    Coffee bar, water, and craft services staging area

  • 24/7 Security

    Navy Yard security perimeter with controlled access

FAQs

  • It depends. You can bring your own (we'll provide a spec sheet for optimization), or our in-house Virtual Art Department can build custom environments for you from scratch. We also have a library of pre-built environments ready to customize.

  • While the day rate for an LED stage is higher, the total budget often balances out by eliminating location fees, travel costs, crew hotels, and weeks of post-production compositing. You also get final pixels on set, reducing post-production time significantly.

  • Yes. We support Genlock sync for professional broadcast cameras and can integrate with XR workflows for live events. Our system has been tested with major broadcasters for live streaming and real-time production.

  • We support all major professional formats including ProRes, DNxHD/HR, ARRIRAW, Blackmagic RAW, and R3D. We can deliver on high-speed drives or via cloud transfer services.

  • Yes, our package includes a technical supervisor, Unreal Engine operator, and LED wall technician. Additional crew like gaffers, grips, and camera operators can be arranged through our network of professionals.
